QuickNet 90/160 Heating Mats

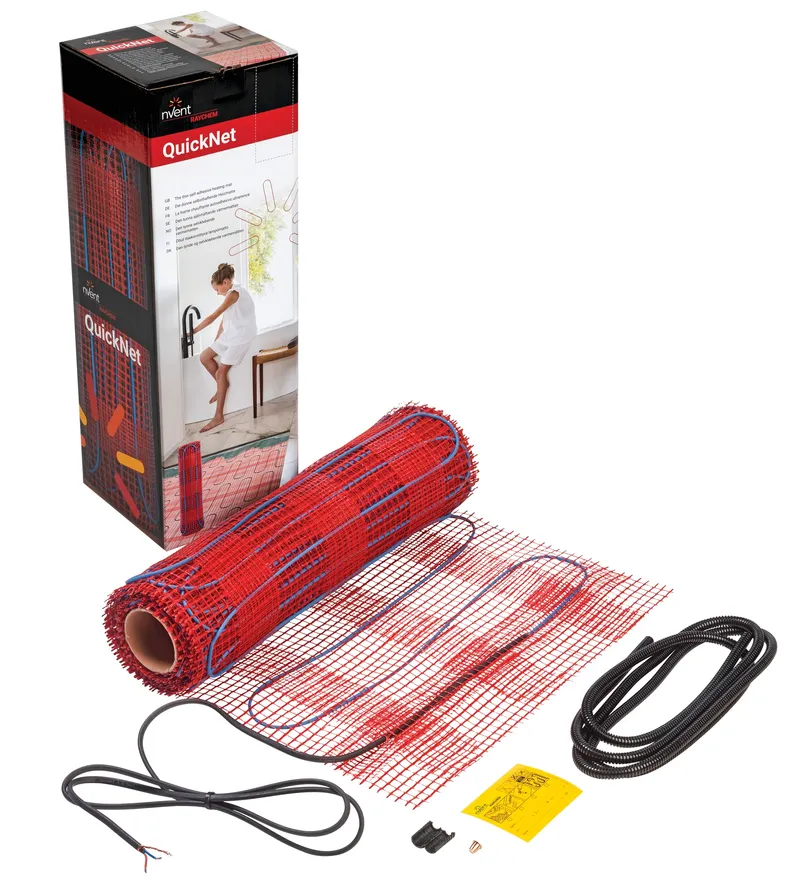

The thin self-adhesive heating mat
The thin QuickNet mat is the ideal solution for renovation—especially for tile floors. The ultra-thin (3.5 mm) mat is laid directly in the filler.
It can be easily installed on all subfloors conforming to applicable building regulations and which are sufficiently insulated.
QuickNet exists in two versions: QuickNet-90 can be used on all solid subfloors and is particularly suited if the floor is well insulated or the underfloor heating system is used for complementary heating. QuickNet 160 has a higher power output and is more suitable when a faster heat up time is required or the subfloor is poorly insulated.
Quicknet 90 can also be used under wooden or engineered wooden floor types.
Benefits
- Extra thin: only 3.5mm
- Ease of installation
- Self-adhesive mat for fast installation
- No need for return cable
- Can be embedded directly in tile adhesive, right underneath the tiles
- Mat simply needs to be rolled out
- Also available ready to use straight out of the box including Senz thermostat (QuickNet 90 with Senz, Quicknet 160 with Senz WiFi)
- Flexible
- Can be installed on all well insulated subfloors
- Can be used in shower areas (wet rooms)
- Many sizes available, even for small rooms
- Reliable
- No maintenance required
- Backed up with 12-20 years total care warranty
Product Specifications
| Heating cable | Constant wattage: 8.1 W/m (90); 11.2 W/m (160) |
|---|---|
| Power output | 90 W/m²; 160 W/m² |
| Voltage | AC 230V |
| Cable spacing | 90mm (90); 70mm (160) |
| Insulation outer jacket | LSOH |
| Cold lead length | 2.5m (90); 5m (160) |
| Heating cable diameter | 3.4 mm |
| Min. bending radius | 30mm |
| Mat material | Fibreglass; self adhesive |
| Net width | 50cm |
Applications
| Rooms | Living rooms, kitchens, bathrooms, dining rooms, children's rooms, conservatories. |
|---|---|
| Floor Covering | Tiles, natural stone (max. 30mm thick), wood (Quicknet 90 only). |
| Subfloor | Cement screed, anhydrite screed, wooden floor (QuickNet 90 only), gypsum board. |
| Product | Part Number | Nominal Power Output (W/m²) | Area (m²) | Output (W) | Dimensions (W x L in M) |
|---|---|---|---|---|---|
| R-QN-N-1,0M2 | SZ18300279 | 90 | 1 | 90 | 0.5 x 2.0 |
| R-QN-N-1,5M2 | SZ18300280 | 90 | 1.5 | 135 | 0.5 x 3.0 |
| R-QN-N-2,0M2 | SZ18300281 | 90 | 2 | 180 | 0.5 x 4.0 |
| R-QN-N-2,5M2 | SZ18300282 | 90 | 2.5 | 225 | 0.5 x 5.0 |
| R-QN-N-3,0M2 | SZ18300283 | 90 | 3 | 270 | 0.5 x 6.0 |
| R-QN-N-3,5M2 | SZ18300284 | 90 | 3.5 | 315 | 0.5 x 7.0 |
| R-QN-N-4,0M2 | SZ18300285 | 90 | 4 | 360 | 0.5 x 8.0 |
| R-QN-N-4,5M2 | SZ18300286 | 90 | 4.5 | 405 | 0.5 x 9.0 |
| R-QN-N-5,0M2 | SZ18300287 | 90 | 5 | 450 | 0.5 x 10.0 |
| R-QN-N-6,0M2 | SZ18300288 | 90 | 6 | 540 | 0.5 x 12.0 |
| R-QN-N-7,0M2 | SZ18300289 | 90 | 7 | 630 | 0.5 x 14.0 |
| R-QN-N-8,0M2 | SZ18300290 | 90 | 8 | 720 | 0.5 x 16.0 |
| R-QN-N-9,0M2 | SZ18300291 | 90 | 9 | 810 | 0.5 x 18.0 |
| R-QN-N-10,0M2 | SZ18300292 | 90 | 10 | 900 | 0.5 x 20.0 |
| R-QN-N-12,0M2 | SZ18300293 | 90 | 12 | 1080 | 0.5 x 24.0 |
| R-QN-P-1,0M2 | SZ18300294 | 160 | 1 | 160 | 0.5 x 2.0 |
| R-QN-P-1,5M2 | SZ18300295 | 160 | 1.5 | 240 | 0.5 x 3.0 |
| R-QN-P-2,0M2 | SZ18300296 | 160 | 2 | 320 | 0.5 x 4.0 |
| R-QN-P-2,5M2 | SZ18300297 | 160 | 2.5 | 400 | 0.5 x 5.0 |
| R-QN-P-3,0M2 | SZ18300298 | 160 | 3 | 480 | 0.5 x 6.0 |
| R-QN-P-3,5M2 | SZ18300299 | 160 | 3.5 | 560 | 0.5 x 7.0 |
| R-QN-P-4,0M2 | SZ18300300 | 160 | 4 | 640 | 0.5 x 8.0 |
| R-QN-P-4,5M2 | SZ18300301 | 160 | 4.5 | 720 | 0.5 x 9.0 |
| R-QN-P-5,0M2 | SZ18300302 | 160 | 5 | 800 | 0.5 x 10.0 |
| R-QN-P-6,0M2 | SZ18300303 | 160 | 6 | 960 | 0.5 x 12.0 |
| R-QN-P-7,0M2 | SZ18300304 | 160 | 7 | 1120 | 0.5 x 14.0 |
| R-QN-P-8,0M2 | SZ18300305 | 160 | 8 | 1280 | 0.5 x 16.0 |
| R-QN-P-9,0M2 | SZ18300306 | 160 | 9 | 1440 | 0.5 x 18.0 |
| R-QN-P-10,0M2 | SZ18300307 | 160 | 10 | 1600 | 0.5 x 20.0 |
