T2Blue-10 & T2Blue-20 Heating Cable

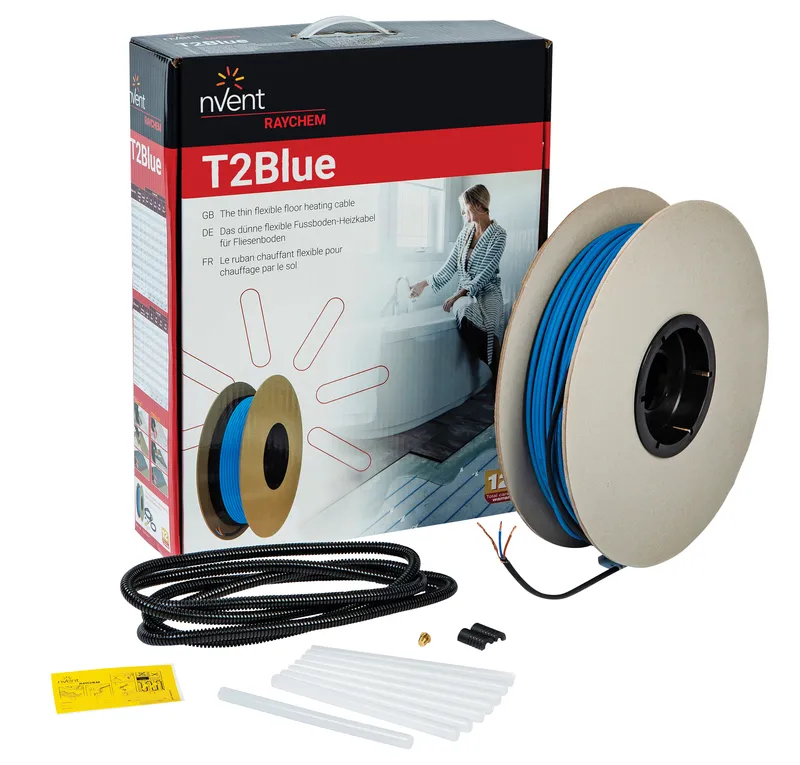

A reel of T2Blue in front of it's supplied box, with glue sticks and other accessories in front.

The flexible underfloor heating cable

The flexible underfloor heating cable is the first choice for complex ground plans in renovation. T2Blue can be installed on all conventional and stable substructures. The heating cable is embedded in the levelling compound, screed or concrete, with the floor covering on top.

T2Blue is available in two power outputs:

  • T2Blue 10 W/m is used for standard floor constructions
  • T2Blue 20 W/m is the preferred solution in areas where higher power is required.

Benefits

  • Easy installation
    • loose wire solution—ideal for complex floor plans
    • Pre-terminated with power cable
    • Also in ready to use boxes with the NRG Temp thermostat
  • Flexible power output (from 60-160W/m²)
    • closer loops = higher output
    • wider loops = lower output
  • No maintenance required
  • Can be installed on cement screed & concrete subfloors
  • Reliable system backed up with 12-20 years total care warranty

Product Specifications

Heating power (T2Blue-10) 10 W/m; constant wattage heating cable with electrically protective covering
Heating power (T2Blue-20) 20 W/m; constant wattage heating cable with electrically protective covering.
Voltage rating AC 230 V
Min. bending radius 30 mm
Minimum heater spacing 50 mm
Rated maximum temperature 65°C
Heating cable external diameter 5.5mm
Outer jacket material LSOH
Heating conductor insulation Fluoropolymer
Length of connecting cable 2.5m
Approvals VDE; SEMKO; CE, UkrSEPRO and EAC

Applications

Rooms Bathrooms; Stairs; Living Areas; Conservatories
Floor Covering Suitable for most floor coverings, subject to installation guidance and floor covering manufacturer approval.
Subfloor Cement screed floor; concrete
Product NameLength (m)Raychem Part Number
R-BL-A-10M/T0/SD 10m kit T2Blue-10 (10W/m) extension packageSZ18300369
R-BL-A-15M/T0/SD 15m kit T2Blue-10 (10W/m) extension packageSZ18300370
R-BL-A-20M/T0/SD 20m kit T2Blue-10 (10W/m) extension packageSZ18300371
R-BL-A-25M/T0/SD 25m kit T2Blue-10 (10W/m) extension packageSZ18300372
R-BL-A-30M/T0/SD 30m kit T2Blue-10 (10W/m) extension packageSZ18300373
R-BL-A-40M/T0/SD 40m kit T2Blue-10 (10W/m) extension packageSZ18300374
R-BL-A-50M/T0/SD 50m kit T2Blue-10 (10W/m) extension packageSZ18300375
R-BL-A-60M/T0/SD 60m kit T2Blue-10 (10W/m) extension packageSZ18300376
R-BL-A-70M/T0/SD 70m kit T2Blue-10 (10W/m) extension packageSZ18300377
R-BL-A-80M/T0/SD 80m kit T2Blue-10 (10W/m) extension packageSZ18300378
R-BL-A-90M/T0/SD 90m kit T2Blue-10 (10W/m) extension packageSZ18300379
R-BL-A-101M/T0/SD 101m kit T2Blue-10 (10W/m) extension package1244-001887
R-BL-A-121M/T0/SD 121m kit T2Blue-10 (10W/m) extension packageSZ18300380
R-BL-A-142M/T0/SD 142m kit T2Blue-10 (10W/m) extension packageSZ18300381
R-BL-A-160M/T0/SD 160m kit T2Blue-10 (10W/m) extension packageSZ18300382
R-BL-A-180M/T0/SD 180m kit T2Blue-10 (10W/m) extension packageSZ18300383
R-BL-A-200M/T0/SD 200m kit T2Blue-10 (10W/m) extension packageSZ18300384
R-BL-C-11M/T0/SD 11m kit T2Blue-20 (20W/m) extension packageSZ18300385
R-BL-C-14M/T0/SD 14m kit T2Blue-20 (20W/m) extension packageSZ18300386
R-BL-C-18M/T0/SD 18m kit T2Blue-20 (20W/m) extension packageSZ18300387
R-BL-C-21M/T0/SD 21m kit T2Blue-20 (20W/m) extension packageSZ18300388
R-BL-C-28M/T0/SD 28m kit T2Blue-20 (20W/m) extension packageSZ18300389
R-BL-C-35M/T0/SD 35m kit T2Blue-20 (20W/m) extension packageSZ18300390
R-BL-C-43M/T0/SD 43m kit T2Blue-20 (20W/m) extension packageSZ18300391
R-BL-C-50M/T0/SD 50m kit T2Blue-20 (20W/m) extension packageSZ18300392
R-BL-C-57M/T0/SD 57m kit T2Blue-20 (20W/m) extension packageSZ18300393
R-BL-C-63M/T0/SD 63m kit T2Blue-20 (20W/m) extension packageSZ18300394
R-BL-C-71M/T0/SD 71m kit T2Blue-20 (20W/m) extension packageSZ18300395
R-BL-C-86M/T0/SD 86m kit T2Blue-20 (20W/m) extension packageSZ18300396
R-BL-C-101M/T0/SD 101m kit T2Blue-20 (20W/m) extension package1244-001902
R-BL-C-115M/T0/SD 115m kit T2Blue-20 (20W/m) extension packageSZ18300397
