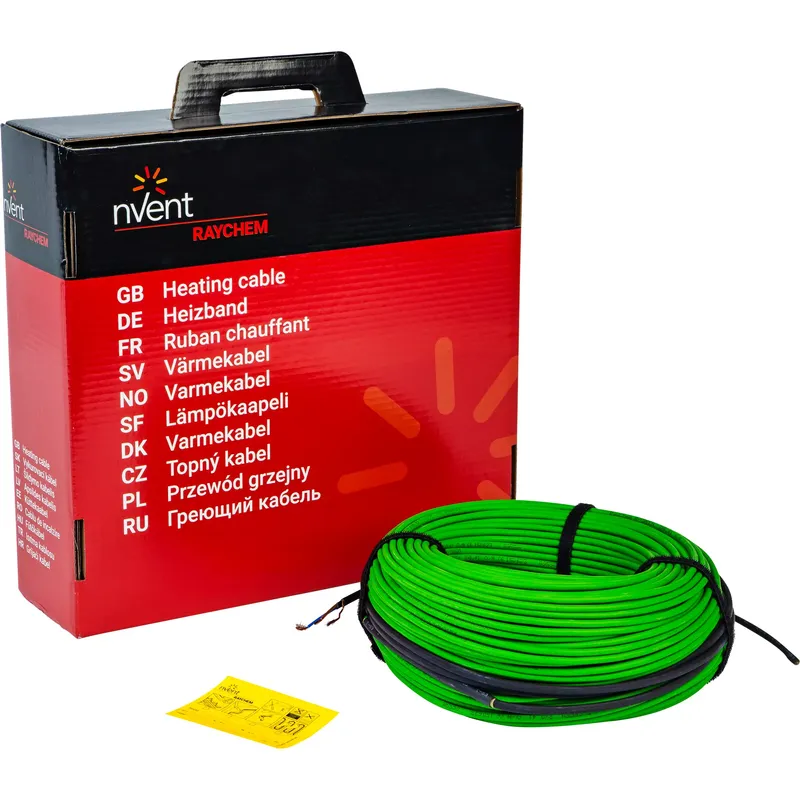

T2Green Heating Cable
The underfloor heating cable for low energy houses
T2Green underfloor heating cable is designed for a new, well insulated, build and is installed directly in a screed of 15 to 30mm.
It has an output of 5W/m and is designed to be installed in well insulted new constructions such as low energy builds and passive houses. T2Green is the ideal floor heating system for additional comfort heating on tiles, marble or natural stone.
Benefits
- Easy installation
- loose wire solution—ideal for complex floor plans
- Pre-terminated with power cable
- Flexible power output (from 30-60W/m²)
- closer loops = higher output
- wider loops = lower output
- No maintenance required
- Can be installed on cement screed & concrete subfloors
- Reliable system backed up with 12-20 years total care warranty
Product Specifications
| Nominal power | 4.4-6.3 W/m |
| Voltage | 230 V |
| Max. Exposure Temperature | +90°C |
| Min. Installation Temperature | +5°C |
| Length of cold lead cable | 2.5 m |
| Dimensions Approx | 5.0mm diameter |
| Min. cable spacing | 50mm |
| Min. bending radius | 30mm |
| RCD | 30mA |
| Construction | PVC-free |
| Certificates | Semko, CE |
Applications
| Rooms | Bathrooms and living areas. |
| Floor Covering | Tiles, marble and stone with a maximum of 30mm thickness. |
| Subfloor | Compatible with all stable subfloors e.g. concrete, anhydrite, asphalt, plaster, ceramic underfloor, wooden subfloors. |
| Product Name | Description | Raychem Part Number |
| R-GR-15M/T0/SD | 15m kit T2Green-5 (5W/m) extension package | SZ18300122 |
| R-GR-20M/T0/SD | 20m kit T2Green-5 (5W/m) extension package | SZ18300123 |
| R-GR-25M/T0/SD | 25m kit T2Green-5 (5W/m) extension package | SZ18300124 |
| R-GR-35M/T0/SD | 35m kit T2Green-5 (5W/m) extension package | SZ18300125 |
| R-GR-40M/T0/SD | 40m kit T2Green-5 (5W/m) extension package | SZ18300126 |
| R-GR-50M/T0/SD | 50m kit T2Green-5 (5W/m) extension package | SZ18300127 |
| R-GR-60M/T0/SD | 60m kit T2Green-5 (5W/m) extension package | SZ18300128 |
| R-GR-70M/T0/SD | 70m kit T2Green-5 (5W/m) extension package | SZ18300129 |
| R-GR-85M/T0/SD | 85m kit T2Green-5 (5W/m) extension package | SZ18300130 |
| R-GR-100M/T0/SD | 100m kit T2Green-5 (5W/m) extension package | SZ18300131 |
| R-GR-115M/T0/SD | 115m kit T2Green-5 (5W/m) extension package | SZ18300132 |
